Research

I looked on OpenDesk to find examples of flat-cut furniture that can be assembled without hardware. I incorporated aspects of multiple pieces to create the tab & slot design for the photo stand.

Concepts

The photo stand needed to be easily assembled and disassembled by one or two people. I chose to hinge the back & side panels together so these could provide a quick setup structure onto which the other panels (with tab & slot attachment) could be attached. The inside of the photo stand needed to support a full-sized printer as well.

Prototyping

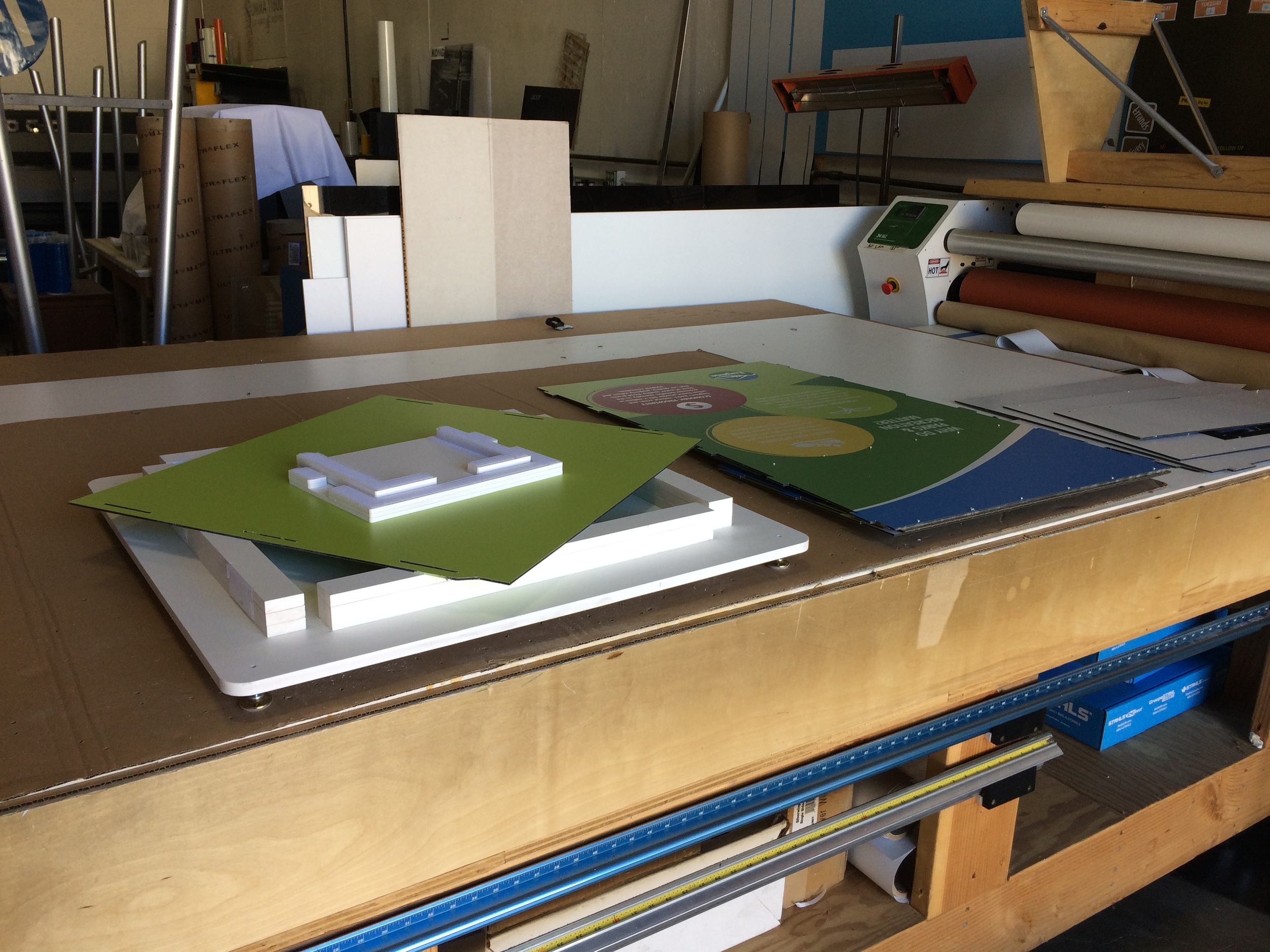

iPad support frames being created from gator board

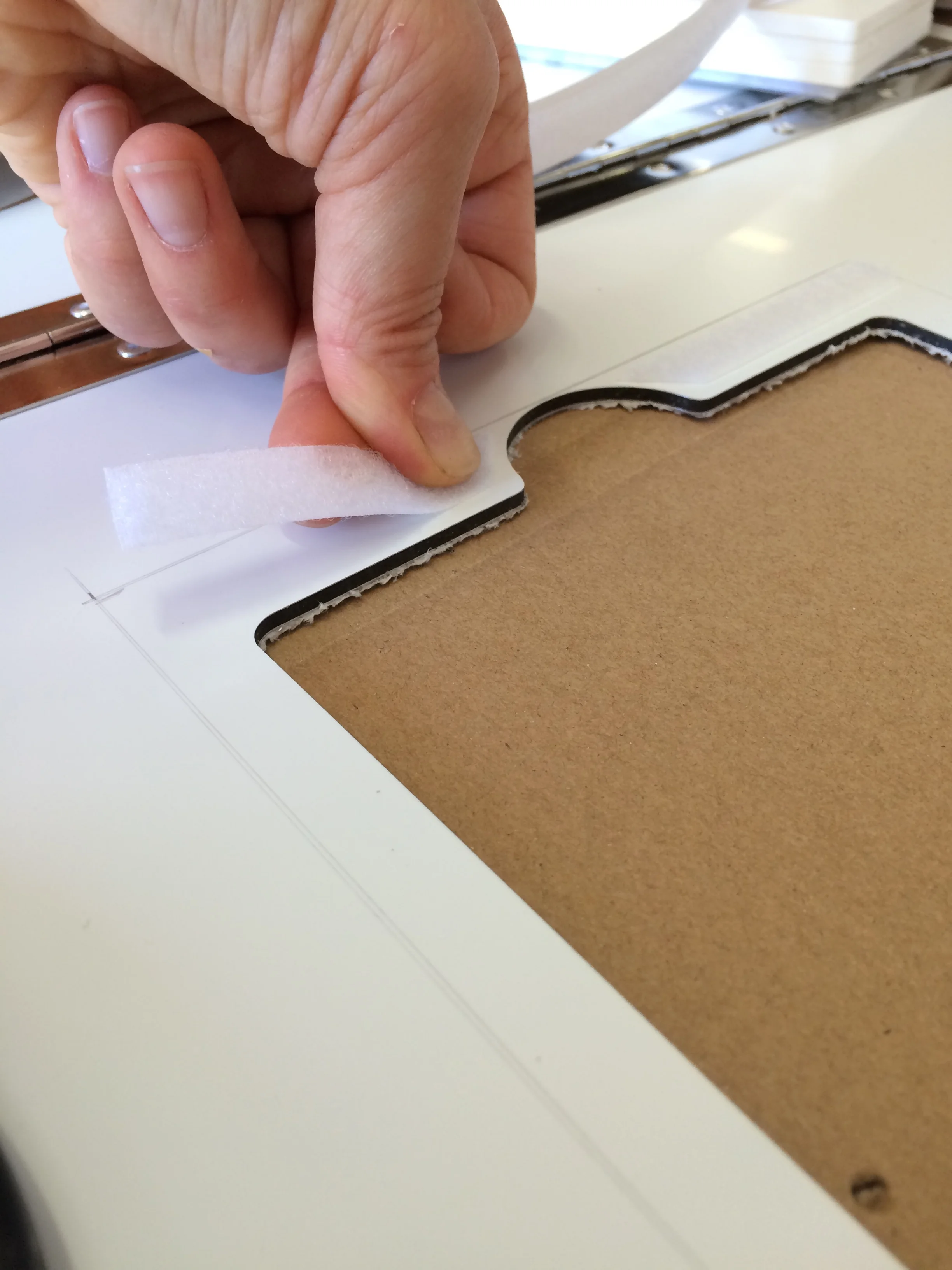

iPad frames needed to be removable so the entire assemble could be collapsible. Velcro was chosen as the method of attachment between the iPad holders and the frame itself.

Rivets hold the piano hinge to pieces of e-panel

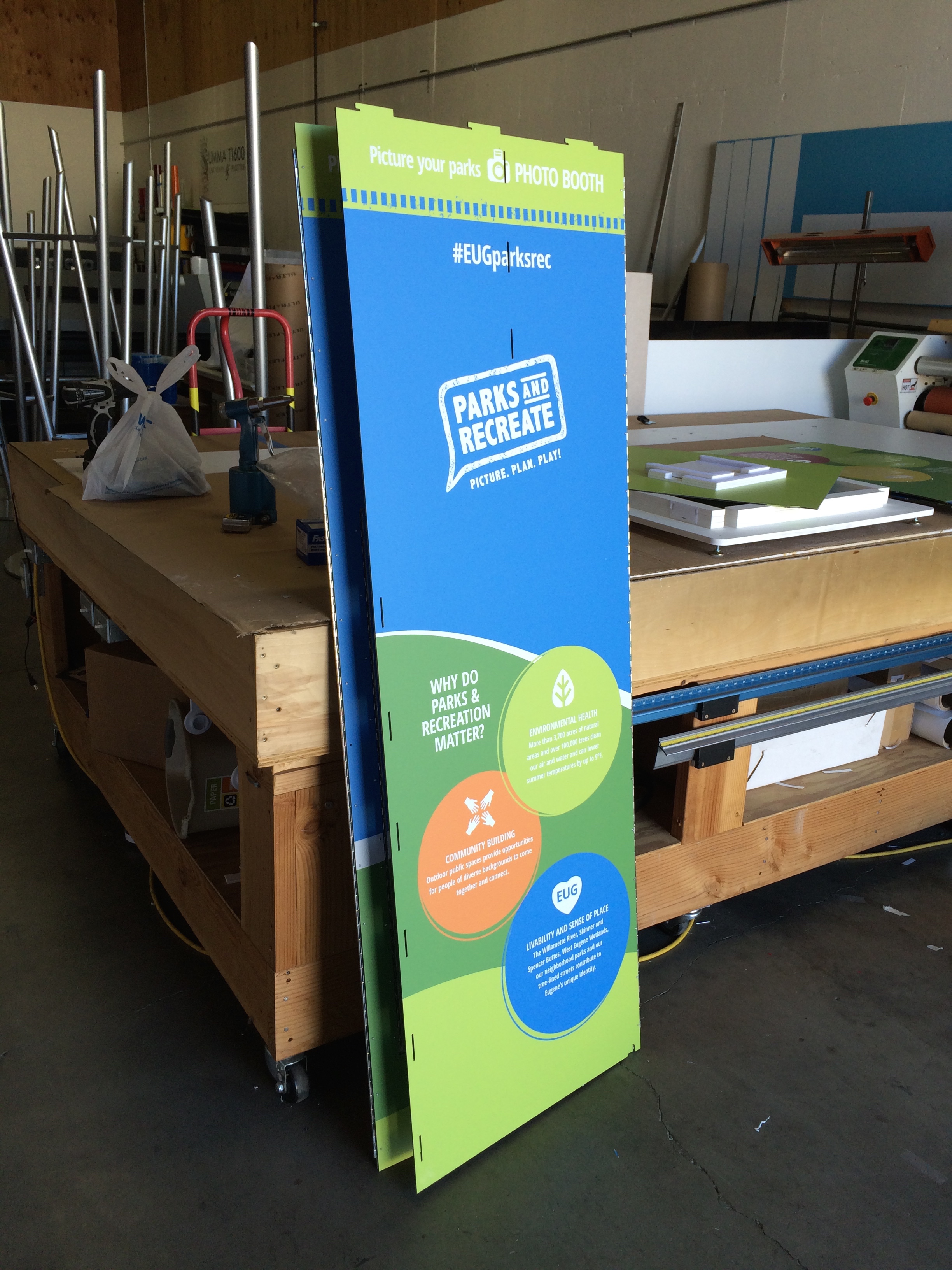

Production

Multiple issues were fixed after the prototype:

The panels were resized to allow the unit to be fully collapsible
The printer shelf was re-worked to be easily assembled after the entire unit was intact
Base was widened to allow the unit to more easily be assembled on top of it
Slots & tabs were adjusted to allow for easier assembly
